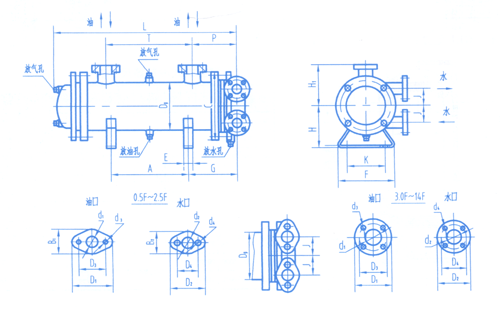

型號 |
A
0.5F |
A
0.65F |
A
0.8F |
A
1.0F |
A
1.2F |
A
1.46F |
A
1.7F |
A
2.1F |
A
2.5F |
A
3.0F |
A
3.6F |
A
4.3F |
A
5.0F |
A
6.0F |
A
7.2F |
A
8.5F |
A
10F |
A
12F |
A
14F |
A
16F |
|
A |
345 |
470 |
595 |
440 |
565 |
690 |
460 |
610 |
760 |
540 |
665 |
815 |
540 |
690 |
865 |
575 |
700 |
875 |
875 |
875 |
|
K |
90 |
90 |
90 |
104 |
104 |
104 |
120 |
120 |
120 |
140 |
140 |
140 |
170 |
170 |
170 |
230 |
230 |
230 |
230 |
230 |
|
E |
40 |
40 |
40 |
45 |
45 |
45 |
50 |
50 |
50 |
55 |
55 |
55 |
60 |
60 |
60 |
65 |
65 |
65 |
65 |
65 |
|
F |
140 |
140 |
140 |
160 |
160 |
160 |
180 |
180 |
180 |
210 |
210 |
210 |
250 |
250 |
250 |
320 |
320 |
320 |
320 |
320 |
|
Dg |
114 |
114 |
114 |
150 |
150 |
150 |
186 |
186 |
186 |
219 |
219 |
219 |
245 |
245 |
245 |
325 |
325 |
325 |
325 |
325 |
|
H1 |
115 |
115 |
115 |
140 |
140 |
140 |
165 |
165 |
165 |
200 |
200 |
200 |
240 |
240 |
240 |
280 |
280 |
280 |
280 |
280 |
|
J |
42 |
42 |
42 |
47 |
47 |
47 |
52 |
52 |
52 |
85 |
85 |
85 |
95 |
95 |
95 |
105 |
105 |
105 |
105 |
105 |
|
H |
95 |
95 |
95 |
115 |
115 |
115 |
140 |
140 |
140 |
200 |
200 |
200 |
240 |
240 |
240 |
280 |
280 |
280 |
280 |
280 |
|
L |
545 |
670 |
790 |
680 |
805 |
930 |
740 |
890 |
1040 |
870 |
995 |
1145 |
920 |
1070 |
1245 |
1000 |
1125 |
1300 |
1300 |
1527 |
|
G |
100 |
100 |
100 |
115 |
115 |
115 |
140 |
140 |
140 |
175 |
175 |
175 |
205 |
205 |
205 |
220 |
220 |
220 |
220 |
220 |
|
P |
93 |
93 |
93 |
105 |
105 |
105 |
120 |
120 |
120 |
170 |
170 |
170 |
190 |
190 |
190 |
210 |
210 |
210 |
210 |
210 |
|
T |
357 |
482 |
607 |
460 |
585 |
710 |
500 |
650 |
800 |
565 |
690 |
840 |
570 |
720 |
895 |
590 |
715 |
890 |
890 |
890 |
|
C |
186 |
186 |
186 |
220 |
220 |
220 |
270 |
270 |
270 |
308 |
308 |
308 |
340 |
340 |
340 |
406 |
406 |
406 |
406 |
406 |
|
法蘭 |
橢圓 圓形 |
|
d1 |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
40 |
40 |
50 |
50 |
50 |
65 |
65 |
65 |
80 |
80 |
80 |
80 |
80 |
|
D1 |
90 |
90 |
90 |
100 |
100 |
100 |
118 |
118 |
118 |
160 |
160 |
160 |
180 |
180 |
180 |
195 |
195 |
195 |
195 |
195 |
|
B1 |
64 |
64 |
64 |
72 |
72 |
72 |
85 |
85 |
85 |
|
|
|
|
|
|
|
|
|
|
|
|
D3 |
65 |
65 |
65 |
75 |
75 |
75 |
90 |
90 |
90 |
125 |
125 |
125 |
145 |
145 |
145 |
160 |
160 |
160 |
160 |
160 |
|
d3 |
11 |
11 |
11 |
11 |
11 |
11 |
14 |
14 |
14 |
18 |
18 |
18 |
18 |
18 |
18 |
8-Ø18 |
8-Ø18 |
8-Ø18 |
8-Ø18 |
8-Ø18 |
|
d2 |
20 |
20 |
20 |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
40 |
40 |
50 |
50 |
50 |
65 |
65 |
65 |
65 |
65 |
|
D2 |
80 |
80 |
80 |
90 |
90 |
90 |
100 |
100 |
100 |
145 |
145 |
145 |
160 |
160 |
160 |
180 |
180 |
180 |
180 |
180 |
|
B2 |
45 |
45 |
45 |
64 |
64 |
64 |
72 |
72 |
72 |
|
|
|
|
|
|
|
|
|
|
|
|
D4 |
55 |
55 |
55 |
65 |
65 |
65 |
75 |
75 |
75 |
110 |
110 |
110 |
125 |
125 |
125 |
145 |
145 |
145 |
145 |
145 |
|
d4 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 | |
| |
|
|
|
我廠將根據客戶來樣來圖非標產品進行設計,報價.. | |
